CHAIR & STOOL SWIVELS



  Swivels for new and replacement applications on chairs and stools.


Chromcraft SWIVEL TILT & 2" Sleeve • UPS Only •
Chromcraft Kitchen Dinette Chair  SWIVEL / TILT replacement

Chromcraft  SWIVEL TILT •  New genuine Chromcraft replacement swivel tilt mechanism.

•   Heavy Duty, Black finish

•   Seat mounting bolt pattern 6 1/4 x 7 1/4  inches.
    Hole Spacing Front to Back 7 inches

•   2 inch Sleeve Included for proper fit into the column.

Chromcraft swivel shape and color changed through the years,
however the seat mounting hole pattern remained the same
for ease of replacement and correct fit. - Made in the USA

ChroSwiv  -  $42.95  -  Quantity

SWIVEL TILT MECHANISM • UPS Only •
SWIVEL TILT MECHANISM - 120160
120160-Swivel-Tilt
Replacement for Douglas and other kitchen,
dinette
and office chairs that swivel and tilt.
5 1/4” on center bolt pattern 
• 12 gauge steel 
• 1” diameter by 4 3/8” long shaft
• Adjustable tension spring.
   You may also need a replacement bushing

Made in the USA

It is good practice to replace the bushing when installing a new Tilt Mechanism,
the older bushings tend to become brittle with age.

             Nylon Bushings for Swivel Tilt Mechanisms
     # 170007 Fits 1 3/4 inch outside diameter chair tubing
     # 170009 Fits 2 inch outside diameter chair tubing

Please enter quantities of desired items below then click

• 120160  -  SWIVEL TILT Mechanism - 120160 • UPS Only •  -  $39.95  -  Quantity
• 170009  -  Replacement Bushing # 170009 for 120160 (2" dia.)  -  $4.98  -  Quantity
• 170007  -  Replacement Bushing # 170007 for 120160 (1 3/4"dia.)  -  $4.98  -  Quantity

Please enter quantities of desired items above then click

SWIVEL PLATE #118S, 10 inch - Heavy Duty
HEAVY DUTY SWIVEL 10.25 inch - Flat Plate
HD10_swivel.jpgSwivel plate for chairs, recliners, gliders
• 10 1/4” square, with holes 8” on center
• 7/8 in thick
• 49 steel Ball Bearings
• Black Powder Coated
• 500 lb. load limit
• sometimes called “Boat Chair Swivel"
    Made in the USA


118S  -  $34.50  -  Quantity
SWIVEL PLATE #5088, No Pitch - 8 in. Flat with Return Spring
SWIVEL PLATE, Flat 8 in., Return Spring - No Pitch
No Pitch swivel plate with “Memory Return” spring.
• similar to #4590 swivel plate
• Swivels 90 degrees Right or Left & Returns to Center.
• 42 Ball Bearing
• 5 3/4” center to center bolt pattern.
• 7.97 x 7.97 x 15/16 Thick (actual measure)
Heavy
duty, 500 lb. load limit - Stools or Chairs - Made in the USA

5088  -  $26.95  -  Quantity
SWIVEL PLATE #5083, 3° Pitch - 8 in., with Return Spring
SWIVEL PLATE, 8 in. Return Spring - 3° Pitch
3° Pitch swivel plate with “Memory Return” spring|
• For Stools or Chairs with a Back
• Swivels 90 degrees Right or Left & Returns to Center.
• 42 Ball Bearing
• 5 3/4” center to center bolt pattern, (maximum bolt spacing 6.25 in.)
• 7.97 x 7.97 x 15/16 Thick (actual measure)
Heavy
duty, 500 lb. rated - Made in the USA

5083  -  $28.95  -  Quantity
SWIVEL PLATE #5083B, BLACK, 3° Pitch - 8 in., with Return
SWIVEL PLATE, 8 in. Return Spring - 3° Pitch, BLACK
3° Pitch swivel plate with “Memory Return” spring|
• For Stools or Chairs with a Back
• Swivels 90 degrees Right or Left & Returns to Center.
• 42 Ball Bearing
• 5 3/4” center to center bolt pattern, (maximum bolt spacing 6.25 in.)
• 7.97 x 7.97 x 15/16 Thick (actual measure)
Heavy
duty, 500 lb. rated - Made in the USA

5083B  -  $30.50  -  Quantity

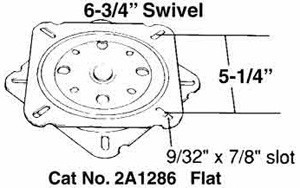

SWIVEL, Flat Replacement Plate #2A1286 & #4590
SWIVEL, Flat Replacement Plate #2A1286 & #4590 (No Return Spring)
675flat_swivel.jpgReplacement Swivel for chairs or stools with No Backs.
• 6 3/4” square, Flat, No Pitch
• 5 1/4” center to center bolt pattern.

• 3/4 inch thick
• 42 ball bearings for smoother action,
         more strength & longer life

Commercial Duty, 500 lb. limit.- Made in the USA

2A1286/4590  -  $12.80  -  Quantity
SWIVEL, Flat Replacement Plate, Black #2A1286B
SWIVEL, Flat Replacement Plate #2A1286B (Black)
(No Return spring)
Same as swivel  #2A1286 above in Black Powder Coat
• 6 3/4” square, Flat, No Pitch Swivel for chairs / stools with no backs.
• 5 1/4” center to center bolt pattern. 
•  3/4 inch thick
• 42 ball bearings
• Black Powder Coat  •  500 lb. load limit - Made in The USA

2A1286B  -  $13.95  -  Quantity
SWIVEL PLATE #5128, No Pitch, 7 in. Flat with Return Spring
SWIVEL PLATE, Flat, with Return Spring - No Pitc
No Pitch FLAT Swivel Plate with “Memory Return” spring.
• 7 inch square
• Swivels 90 degrees in Both directions & Returns to Center
• Mounting holes: 5.25 in. to 6 in on center.

Commercial Duty, 500 lb. load limit - used by Casinos
- Made in the USA


5128  -  $28.95  -  Quantity

SWIVEL PLATE #2A1363, 6 3/4 in. 3° Pitch
SWIVEL PLATE - 3° Pitch - 2A1363 & 4630
2A1363-3degre.jpgSwivel Plate for Chairs or Stools With BACKS.
• 3 degree pitch
• 6 3/4 in. square
• 5 1/4 in. center to center bolt pattern
• Thickness at: Front, 1-1/8 - Back, 7/16 - Center, 1 inch
• Heavy Duty, 42 ball bearings
• 500 lb. load limit
- Made in the USA  --  Swivel Numbers: 2A1363 & 4630

2A1363 / 4630  -  $14.90  -  Quantity
SWIVEL PLATE #5170, 7 in. with 3° Pitch & RETURN SPRING
SWIVEL PLATE with RETURN SPRING - 3° Pitch
5170-pitched-swivel.jpgSwivel Plate, 3 degree pitch with “Memory Return” spring.

For Seating with a Back
  (similar to #4630 swivel plate)

• swivels 90 degrees in both directions and returns to center
• Top of swivel is marked “TOP”
Commercial Duty, 500 lb. load limit

Made in the USA


5170  -  $28.95  -  Quantity
SWIVEL PLATE #4480, 3° Pitch, 7 in. (Round Bottom Plate / 4 threaded holes)
Square Top plate, Round Bottom plate with 4 threaded bolt holes.
4480_front.jpg4480-back.jpg3 Degree Pitch for stools with a back.
Use 1/4”x 20 bolts to attach the round swivel plate
to the steel pedestal top on kitchen & dinette swivel chairs.
• Full nylon race & 12 bearings for durability and smooth ride.
• Bottom Plate 4 (1/4-20 thread) tapped holes on 2-1/2 inch centers.
• Top Plate 7 in square, slotted mounting holes on 5-1/4 in centers.
• Commercial Duty, 500 lb. load limit. - Made in the USA

4480  -  $26.00 $24.00 - On SALE ! Quantity
SWIVEL, SQUARE 4CD, 7 in. Flat - #100103
SQUARE 4CD SWIVEL 7" Flat
100103_swivel_top.jpg#100103 4CD flat swivel plates for chairs or stools without backs
• 4 corner design for chair legs that bolt directly to swivel plate.
• 7" square top plate has slotted mounting holes on 5-½" centers.
• 8 1/4" bottom plate has clearance holes on 6.375" centers.
• Height: 7/8”
Heavy gauge steel for high strength. High-tech full race nylon bearings for smooth action and durability. Torture tested over 500,000 turns with 500 lb load.
- Made in the USA

100103  -  $31.65  -  Quantity
SWIVEL, SQUARE 4CD, 7 in., 3° Pitch - #100102
SQUARE 4CD SWIVEL, 7" - 3° Pitch
100102_cd3.jpg#100102 - 4CD 3 degree pitch swivel plates for Chairs with Backs.

• 4 corner design for chair legs that bolt directly to swivel plate.
• 7" square top plate has slotted mounting holes on 5-½" centers.
• 8 1/4" bottom plate has clearance holes on 6.375" centers.
• Height: 1”
 Heavy gauge steel for high strength. High-tech full race nylon bearings for smooth ride and durability. Torture tested over 500,000 turns with 500 lb load.
- Made in the USA

100102  -  $31.65  -  Quantity
SWIVEL, SQUARE 4CD, 7 in., 3° Pitch & RETURN - #101101
SQUARE 4CD SWIVEL, 7" - 3° Pitch & Auto Return Spring
100102_cd3.jpg#101101 - 4CD, 3 degree pitch for Chairs with Backs.
• Auto Return swivel plate.

• 4 corner design for chair legs that bolt directly to swivel plate.
• 7" square top plate has slots on 5 1/4" centers.
• 8 1/4" bottom plate has clearance holes on 6.375" centers.

- Made in the USA

101101  -  $36.60  -  Quantity
ROCKER BOX (No Swivel) - 100-3SR
ROCKER MECHANISM (No Swivel) 100-3SR
1/4 in. pitch, No Swivel
• Adjustable Rocker Tension 
• Coil spring rocker with 3 Springs.
Overall size:  Front to Back  8 1/2", Side to Side 9 3/8"
• 3 inches thick (depth)
Mounting Holes front to back 5, 5.75, & 6.75 -- side to side 8.5
• Heavy Duty STEEL construction
- Made in the USA

100-3SR  -  $24.90  -  Quantity
ROCKER / SWIVEL BOX - 100-3SRS
ROCKER / SWIVEL Mechanism -100-3SRS
• 1/4 in. pitch, WITH Swivel
• Adjustable Rocker Tension 
• Coil spring rocker with 3 Springs.• 2 1/2 inches thick (depth)

Overall size:  Front to Back  8 1/2", Side to Side 9 3/8"
• Fastener Holes front to back 5, 5.75, 6.75 - side to side 8.5 inch
• Bottom Plate: 7in Square - Fastener slots fit 5.25 to 6-3/16 inch centers
 - Made in the USA

NOTE: Pictured Upside Down to show the bottom plate better

100-3SRS  -  $29.90  -  Quantity
